registration similarity measurement the derivative is computed in gradient object 2010-May-14 add: consider weight function for pixel: m_pWeightModelTest(Ref), GetWeightByWorld; No mask: 1, outlier: 0; More...

#include <zxhMetricBase.h>

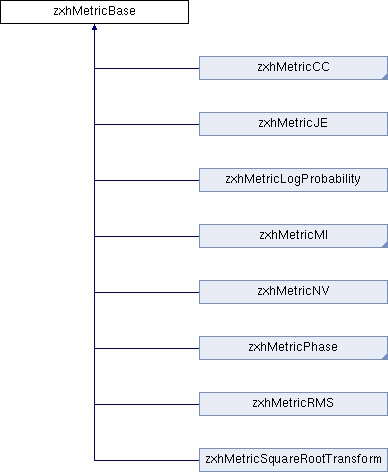

Inheritance diagram for zxhMetricBase:

List of all members.

Public Member Functions
	zxhMetricBase ()
	constructor
virtual	~zxhMetricBase ()
virtual zxhMetricBase *	Clone (zxhMetricBase *&pRet)
virtual std::string	GetMetricType ()=0
	GetMetricType()=0.
virtual bool	IsThisMetricType (std::string s)
virtual bool	IsThisMetricType (zxhMetricBase *pm)
virtual bool	SetImage (zxhImageData pImageTest, zxhImageData pImageRef)
	1) set image ; 2) set dimension; 3) set sampling to be consistent
virtual bool	SetMaskImage (zxhImageData pMaskTest, zxhImageData pMaskRef)
virtual zxhImageData *	GetMaskImageTest ()
virtual zxhImageData *	GetMaskImageRef ()
virtual bool	GetMaskByWorld (zxhImageData *pMaskImage, float fx, float fy, float fz, float ft)
	pixels outside of mask are regarded as background
virtual float	GetWeightByWorld (zxhImageModelingBaseT< float, float > *pWeightModel, float fx, float fy, float fz, float ft)
	pixels outside of mask are regarded as background
virtual zxhImageData *	GetTestImage ()
virtual zxhImageData *	GetRefImage ()
virtual zxhImageModelingBaseT < float, float > *	GetWegihtModelRef ()
virtual zxhImageModelingBaseT < float, float > *	GetWegihtModelTest ()
virtual void	SetWeightModelRef (zxhImageModelingBaseT< float, float > *p)
virtual void	SetWeightModelTest (zxhImageModelingBaseT< float, float > *p)
virtual bool	SetImageModelingType (zxhImageModelingBase pModelingTest, zxhImageModelingBase pModelingRef)
virtual bool	SetTransform (zxhTransformBase *pTr)
virtual bool	SetForwardComposedTransform (zxhTransformBase *p)
virtual zxhTransformBase *	GetForwardComposedTransform ()
virtual zxhTransformBase *	GetTransform ()
virtual void	SetDimension (int i)
	normall dimension is same to image's, but not guaranteed
virtual int	GetDimension ()
virtual void	SetSamplingPhysical (float x, float y=1.0f, float z=1.0f, float t=1.0f)
virtual const float *	GetSamplingInterval ()
virtual const float *	GetSamplingPhysical ()
virtual int	GetValue (zxhlfloat &fValue)=0
virtual std::string	GetPrintString ()
virtual bool	SetMetricFromStream (std::ifstream &ifs)
virtual bool	GetWorldRoiFrom (float f[])
	has been set ?
virtual bool	GetWorldRoiTo (float f[])
virtual bool	SetWorldRoi (float xf, float xt, float yf, float yt, float zf, float zt, float tf, float tt)
	this function just record the two corner points, DO NOT guarantee from < to
virtual bool	GetInnerRoiTest (float from[], float to[])
virtual bool	WithinWorldROI (float wx, float wy, float wz, float wt)
virtual void	PreComputeTransformField ()
virtual void	ResampleTestImagesSpacingPhysIntervel ()
	resample test image, and then update SampleIntervel to 1 ; for the use of pre-transform in FFD and FFD2
virtual void	ResampleImagesSpacingPhysIntervel ()
Protected Member Functions
virtual bool	TransformPointTo (float from, float to)
virtual void	TransformWorldToWorld (const float fromWorld, float toWorld)
virtual bool	TransformPointToWorldUsingPreComputed (int x, int y, int z, int t, float wto[])
Protected Attributes
int	m_iDimension
zxhImageData *	m_pImageTest
zxhImageData *	m_pImageRef
zxhImageData *	m_pMaskTest
zxhImageData *	m_pMaskRef
zxhImageModelingBaseT< float, float > *	m_pWeightModelTest
zxhImageModelingBaseT< float, float > *	m_pWeightModelRef
zxhImageModelingBase *	m_pModelingTest
	2010-12-22: model will new an object when setting model, and delete when the object is deleted
zxhImageModelingBase *	m_pModelingRef
zxhTransformBase *	m_pTransform
zxhTransformBase *	m_pForwardComposedTransform
float	m_afSamplingInterval [ImageDimensionMax]
	sampling, image grids, when resample test image to m_afSamplingPhysical spacing, sampling interval then equal 1
float	m_afSamplingPhysical [ImageDimensionMax]
	sampling, image grids
float	m_afRoiWorld [2][ImageDimensionMax]
	the two vertex of roi in world coordinate, NOT guarantee from<to when use this, please convert to test image grid coordinate
bool	m_bSetRoiWorld
	if this is true, then use m_afRoiWorld directly
zxhImageData	m_imgRefImageOnXindex
	pre-compute: I_f with integer coordinate x -- m_pImageTest; I_f(y) with integer coordinate x-- m_imgMMIrefImage
zxhImageData	m_imgMaskTestRefOnXindex
	include outliers of imageref, masktest, and maskref
zxhImageDataT< float >	m_aimgRefGradientOnXindex [ImageDimensionMax]
	GradientI_r(y)_1/2/3 with interger coordinate x.
zxhImageDataT< float >	m_aimgPreComputeTransformToWorld [ImageDimensionMax]
	should be same dim, size, spacing as m_pImageTest; not displacement, but toworld
bool	m_bPreComputeTransformToWorld

Detailed Description

registration similarity measurement the derivative is computed in gradient object 2010-May-14 add: consider weight function for pixel: m_pWeightModelTest(Ref), GetWeightByWorld; No mask: 1, outlier: 0;

Constructor & Destructor Documentation

zxhMetricBase::~zxhMetricBase ( ) [virtual]

Returns:

Member Function Documentation

zxhMetricBase * zxhMetricBase::Clone ( zxhMetricBase *& pRet ) [virtual]

virtual int zxhMetricBase::GetDimension ( ) [inline, virtual]

Returns:

bool zxhMetricBase::GetInnerRoiTest	(	float	from[],
		float	to[]
	)		`[virtual]`

Returns:: using Roi on test image grid, Guarantee from < to

std::string zxhMetricBase::GetPrintString ( ) [virtual]

Returns:

Reimplemented in zxhMetricJE, zxhMetricMI, and zxhMetricNV.

virtual zxhImageData* zxhMetricBase::GetRefImage ( ) [inline, virtual]

Returns:

virtual const float* zxhMetricBase::GetSamplingInterval ( ) [inline, virtual]

Returns:

virtual zxhImageData* zxhMetricBase::GetTestImage ( ) [inline, virtual]

Returns:

virtual zxhTransformBase* zxhMetricBase::GetTransform ( ) [inline, virtual]

Returns:

virtual int zxhMetricBase::GetValue ( zxhlfloat & fValue ) [pure virtual]

Returns:: similarity and number of computed pixel pair

Implemented in zxhMetricCC, zxhMetricCCFFD2, zxhMetricJE, zxhMetricMI, zxhMetricMIConstraint, zxhMetricMIFFD, zxhMetricMIFFD2, zxhMetricMIFFD2MultiImage, zxhMetricMIFFDSEMI, zxhMetricMIMultiImage, zxhMetricNV, zxhMetricPhase, zxhMetricPhaseFFD, zxhMetricRMS, and zxhMetricSquareRootTransform.

virtual zxhImageModelingBaseT<float,float>* zxhMetricBase::GetWegihtModelRef ( ) [inline, virtual]

Returns:

void zxhMetricBase::PreComputeTransformField ( ) [virtual]

Transform field image spacing == sample physical to use it the most accuracy in similarity computation. and image info using test image; only used in FFD+MI (including SEMI, FFD2) registration

Transform field image spacing == sample physical to use it the most accuracy in similarity computation. and image info using test image

virtual bool zxhMetricBase::SetForwardComposedTransform ( zxhTransformBase * p ) [inline, virtual]

Returns:: TransformPointTo = FormerTransform.TransformPointTo(m_pTransform.TransformPointTo) = FormerTransform * m_pTransform(from)

bool zxhMetricBase::SetImageModelingType	(	zxhImageModelingBase *	pModelingTest,
		zxhImageModelingBase *	pModelingRef
	)		`[virtual]`

Returns:: clone modeling type; not setting pointers

bool zxhMetricBase::SetMaskImage	(	zxhImageData *	pMaskTest,
		zxhImageData *	pMaskRef
	)		`[virtual]`

Returns:: resize mask image to test and ref coordinate

Reimplemented in zxhMetricPhaseLocalMatrixConstDiscretePath.

bool zxhMetricBase::SetMetricFromStream ( std::ifstream & ifs ) [virtual]

Returns:

Reimplemented in zxhMetricJE, zxhMetricMI, and zxhMetricNV.

void zxhMetricBase::SetSamplingPhysical	(	float	x,
		float	y = `1.0f`,
		float	z = `1.0f`,
		float	t = `1.0f`
	)		`[virtual]`

Returns:: DoNOT allowed sampling virtual void SetSamplingInterval(float x,float y=1.0f,float z=1.0f,float t=1.0f);; sampling

Reimplemented in zxhMetricMIFFD2MultiImage, and zxhMetricMIMultiImage.

virtual bool zxhMetricBase::SetTransform ( zxhTransformBase * pTr ) [inline, virtual]

Returns:

Reimplemented in zxhMetricMIFFD2MultiImage, and zxhMetricMIMultiImage.

virtual void zxhMetricBase::SetWeightModelRef ( zxhImageModelingBaseT< float, float > * p ) [inline, virtual]

Returns:

bool zxhMetricBase::TransformPointTo	(	float *	from,
		float *	to
	)		`[protected, virtual]`

collected transformations sum current transform TC with former sum transform TF to a new former transform TS = TC*TF(X) return transform to out lier of ref image ?

virtual bool zxhMetricBase::TransformPointToWorldUsingPreComputed	(	int	x,
		int	y,
		int	z,
		int	t,
		float	wto[]
	)		`[inline, protected, virtual]`

return inside the m_aimgPreComputeTransformToWorld[ImageDimensionMax] be careful: NOT return is out lier to ref image

Member Data Documentation

int zxhMetricBase::m_iDimension [protected]

Returns:

zxhTransformBase* zxhMetricBase::m_pForwardComposedTransform [protected]

Returns:: this transform is used as pre-transformation which can be any transformation type, but due practical reason, normally it is zxhTransformFields derived from displacements of former registration steps results T(X) = Tcurr(Tforwardcomposed(X) )

zxhImageData* zxhMetricBase::m_pImageRef [protected]
