zxhMetricCCFFD2 Class Reference

#include <zxhMetricCCFFD2.h>

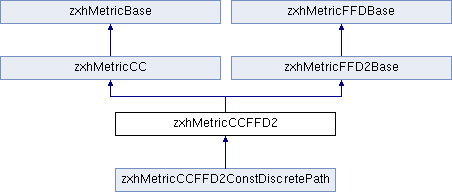

Inheritance diagram for zxhMetricCCFFD2:

List of all members.

Public Member Functions
	zxhMetricCCFFD2 (void)
	constructor
virtual	~zxhMetricCCFFD2 (void)
virtual std::string	GetMetricType ()
	GetMetricType()=0.
virtual zxhMetricBase *	Clone (zxhMetricBase *&pRet)
virtual int	GetValue (zxhlfloat &fValue)
virtual int	ComputeConstanceForFFDGradient ()
Protected Member Functions
virtual void	SetFFDMetricBase ()
	this function is to remind of setting m_pMetricBase in non-abstract derived class
virtual int	ComputeConstanceForGradient ()
virtual bool	EvaluateAllPixelOnTargetForceForMetric ()
	1. call EvaluateOnPixelSource2TargetForce to compute each voxel and minus the force direction
virtual void	EvaluateOnPixelTarget2SourceForce (float *afForce, const float *gridCoTest, const float *gridCoRef)
Protected Attributes
int	m_nc_Samples
zxhlfloat	m_fc_SumTest
zxhlfloat	m_fc_SumRef
zxhlfloat	m_fc_SumTestSquare
zxhlfloat	m_fc_SumRefSquare
zxhlfloat	m_fc_SumTestRef
zxhlfloat	m_fc_Numerator
zxhlfloat	m_fc_Denominator
zxhlfloat	m_fc_DenoTest
zxhlfloat	m_fc_DenoRef
zxhlfloat	m_fc_SquareCC
zxhlfloat	m_fc_minusSSD
zxhlfloat	m_fc_FactorTest
zxhlfloat	m_fc_FactorRef

---

Detailed Description

use square of correlation coefficient = ( SumAB - SumA*SumB/N )^2 /( (SumA2 - SumA*SumA/N)*(SumB2-SumB*SumB/N) ) ; where d/dT in zxhMetricCCFFD2_derivativeCC.pdf;

---

Constructor & Destructor Documentation

zxhMetricCCFFD2::~zxhMetricCCFFD2

(

void

)

[virtual]

Returns:

---

Member Function Documentation

zxhMetricBase * zxhMetricCCFFD2::Clone

(

zxhMetricBase *&

pRet

)

[virtual]

Returns:

Reimplemented from zxhMetricCC.

Reimplemented in zxhMetricCCFFD2ConstDiscretePath.

virtual int zxhMetricCCFFD2::ComputeConstanceForFFDGradient

(

)

[inline, virtual]

Call 1. ComputeConstanceForGradient to compute the constant from CC 2. zxhMetricFFD2Base::ComputeConstanceForFFDGradient which calls EvaluateAllPixelOnTargetForceForMetric

Reimplemented from zxhMetricFFD2Base.

Reimplemented in zxhMetricCCFFD2ConstDiscretePath.

bool zxhMetricCCFFD2::EvaluateAllPixelOnTargetForceForMetric

(

)

[protected, virtual]

1. call EvaluateOnPixelSource2TargetForce to compute each voxel and minus the force direction

1. call EvaluateOnPixelSource2TargetForce to compute each voxel and minus the force direction 2. add weight info from m_pWeightModelTest(Ref)

Implements zxhMetricFFD2Base.

int zxhMetricCCFFD2::GetValue

(

zxhlfloat &

fValue

)

[virtual]

Returns:

Reimplemented from zxhMetricCC.

---

The documentation for this class was generated from the following files:

• zxhMetricCCFFD2.h
• zxhMetricCCFFD2.cpp
