zxhMetricMIFFD2 Class Reference

MIconstraint + FFD2 GetValue: call PreComputeTransformField assume this : ComputeConstanceForFFDGradient will resample testimage using m_afSamplingPhysical can do line-search in optimization, however line-search time consuming, NOT used not SIEMI. More...

#include <zxhMetricMIFFD2.h>

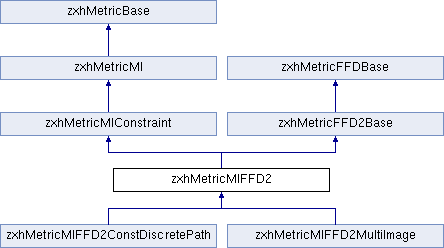

Inheritance diagram for zxhMetricMIFFD2:

List of all members.

Public Member Functions
	zxhMetricMIFFD2 (void)
	constructor
	~zxhMetricMIFFD2 (void)
virtual std::string	GetMetricType ()
virtual zxhMetricBase *	Clone (zxhMetricBase *&pRet)
virtual int	GetValue (zxhlfloat &fvalue)
virtual int	ComputeHistogramFromPDF4D (zxhlfloat *&afPDF, zxhlfloat &fTotalFreq, float xfTestFrom, float xfTestTo, float yfTestFrom, float yfTestTo, float zfTestFrom, float zfTestTo, float tfTestFrom, float tfTestTo)
virtual int	ComputeConstanceForFFDGradient ()
	pre compute:
virtual void	SetAlwaysUpdateGetValue (bool b)
virtual bool	GetAlwaysUpdateGetValue (void)
Protected Member Functions
virtual void	SetFFDMetricBase ()
	this function is to remind of setting m_pMetricBase in non-abstract derived class
virtual void	EvaluateOnPixelSource2TargetForce (zxhlfloat *afForce, int iLengthOfHistogramDim, const float *gridCoTest, const float *gridCoRef) const
virtual bool	EvaluateAllPixelOnTargetForceForMetric ()
Protected Attributes
bool	m_bAlwaysUpdateGetValue

---

Detailed Description

MIconstraint + FFD2 GetValue: call PreComputeTransformField assume this : ComputeConstanceForFFDGradient will resample testimage using m_afSamplingPhysical can do line-search in optimization, however line-search time consuming, NOT used not SIEMI.

---

Constructor & Destructor Documentation

zxhMetricMIFFD2::~zxhMetricMIFFD2

(

void

)

Returns:

---

Member Function Documentation

zxhMetricBase * zxhMetricMIFFD2::Clone

(

zxhMetricBase *&

pRet

)

[virtual]

Returns:

Reimplemented from zxhMetricMIConstraint.

Reimplemented in zxhMetricMIFFD2ConstDiscretePath, and zxhMetricMIFFD2MultiImage.

int zxhMetricMIFFD2::ComputeHistogramFromPDF4D	(	zxhlfloat *&	afPDF,
		zxhlfloat &	fTotalFreq,
		float	xfTestFrom,
		float	xfTestTo,
		float	yfTestFrom,
		float	yfTestTo,
		float	zfTestFrom,
		float	zfTestTo,
		float	tfTestFrom,
		float	tfTestTo
	)		[virtual]

1) To reimplement this func in zxhMetricMI, in order to use TransformPointToWorldUsingPreComputed 2) assumes sample physical = test image sp = pre-transform field image sp

Reimplemented from zxhMetricMI.

bool zxhMetricMIFFD2::EvaluateAllPixelOnTargetForceForMetric

(

)

[protected, virtual]

Call 1. EvaluateOnPixelOnTargetForce for NMI 2. 3. ComputeAllControlPointDerivativeBySumLocalEstimation 4. AddAllCtrPntOnTargetForceForBendingEnergy adding the bending energy force to -> m_pCtrPntDerivativeConst 1. call EvaluateOnPixelSource2TargetForce to compute each voxel and minus the force direction 2. add weight info from m_pWeightModelTest(Ref)

1. call EvaluateOnPixelSource2TargetForce to compute each voxel and minus the force direction (test image sp = sampling = pre-transform sp = voxel force const sp) 2. add weight info from m_pWeightModelTest(Ref)

Implements zxhMetricFFD2Base.

void zxhMetricMIFFD2::EvaluateOnPixelSource2TargetForce	(	zxhlfloat *	afForce,
		int	iLengthOfHistogramDim,
		const float *	gridCoTest,
		const float *	gridCoRef
	)		const [protected, virtual]

CrumIPMI03's idea, the force to transform source image toward target using parzen window PDF estimation, only give NMI derivatves 1. ComputeConstanceForGradient() called with m_afC_H? and m_afFreqTotal, m_fNormalisedMutualInformation, m_fEntropyJ 2. gridCoTest are integral 3. DHist/du = sum_{all (x,y) related p()}(1+logp)Dp/du ; sum_{all (x,y) related p()} = sum_{-2,2bspline p()} 4. Dp()_{x,y}/du = Bspline(It(x))Dbspline(Ir(y))GradientRef(y)[]*(1/Binsize), 1/Binsize is omitted 5. The weight info from m_pWeightModelTest(Ref) should be computed here, however to improve the computation, we include that in EvaluateAllPixelOnTargetForceForNMI

1. ComputeConstanceForGradient() called with m_afC_H? and m_afFreqTotal 2. gridCoTest are integral 3. DHist/du = sum_{all (x,y) related p()}(1+logp)Dp/du ; sum_{all (x,y) related p()} = sum_{-2,2bspline p()} 4. Dp()_{x,y}/du = 1/(fTotalFreq)* Bspline(It(x))Dbspline(Ir(y))GradientRef(y)[]*(1/Binsize), NOTE some softwares do not have 1/Binsize because they normalized the image intensity using the binsize this in effect is equivalent to ours because they will result in using 1/Binsize in the image gradient values.

Reimplemented from zxhMetricMI.

int zxhMetricMIFFD2::GetValue

(

zxhlfloat &

fValue

)

[virtual]

Returns:

similarity and number of computed pixel pair

Reimplemented from zxhMetricMIConstraint.

Reimplemented in zxhMetricMIFFD2MultiImage.

---

Member Data Documentation

bool zxhMetricMIFFD2::m_bAlwaysUpdateGetValue [protected]

in gradient descent optimization, ComputeConstanceForFFDGradient is called and metric value has been computed therefore, unless m_bAlwaysUpdateGetValue is set to true, GetValue should not recompute the metric again default: true

---

The documentation for this class was generated from the following files:

• zxhMetricMIFFD2.h
• zxhMetricMIFFD2.cpp
