zxhMetricMIConstraint Class Reference

(normalized) mutual information + penalty term(constraint) More...

#include <zxhMetricMIConstraint.h>

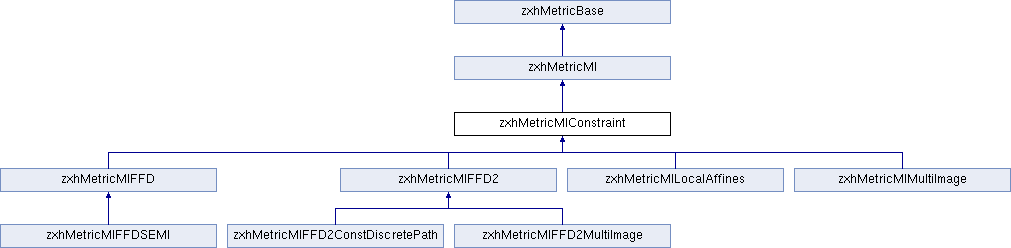

Inheritance diagram for zxhMetricMIConstraint:

List of all members.

Public Member Functions
	zxhMetricMIConstraint (void)
	constructor
	~zxhMetricMIConstraint (void)
virtual std::string	GetMetricType ()
	GetMetricType()=0.
virtual zxhMetricBase *	Clone (zxhMetricBase *&pRet)
virtual int	GetValue (zxhlfloat &fValue)
virtual zxhlfloat	GetSumImpressibilityTerm (zxhlfloat Orig, zxhlfloat After)
virtual zxhlfloat	GetVolumeFromRef (zxhTransformBase *pTrans, float xfWorldFrom, float xfWorldTo, float yfWorldFrom, float yfWorldTo, float zfWorldFrom, float zfWorldTo, float tfWorldFrom, float tfWorldTo)
	volume mask image is on source/ref image space, get sum_volume_size after backward transform to target/test image space
virtual void	SetWeightingVolumeFromRef (float f)
virtual float	GetWeightingVolumeFromRef ()
virtual void	SetVolumeFromRefOrigin (float f)
virtual float	GetVolumeFromRefOrigin ()
virtual void	SetStandardDeviationRef (float f)
virtual float	GetStandardDeviationRef ()
virtual void	SetMaskImageForRefVolume (zxhImageData *p)
	Mask Image Has to be binary.
virtual zxhImageData *	GetMaskImageForRefVolume ()
virtual float	GetWeightedLocalVolumeChanges (float fVolumeChanges)
	weighting the local volume changes according the Gaussian
virtual float	GetWeightedVolumeChangesFromTest (float &fNumVolumeCounted, zxhTransformBase *pTrans, zxhTransformBase *pRegriddingTrans, zxhImageData *pMaskTest, float xfWorldFrom, float xfWorldTo, float yfWorldFrom, float yfWorldTo, float zfWorldFrom, float zfWorldTo, float tfWorldFrom, float tfWorldTo)
virtual void	SetWeightingVolumeFromTest (float f)
virtual float	GetWeightingVolumeFromTest ()
virtual void	SetStandardDeviationTest (float f)
virtual float	GetStandardDeviationTest ()
virtual void	SetRegriddingdTransform (zxhTransformBase *p)
virtual zxhTransformBase *	GetRegriddingdTransform ()
virtual void	SetMaskImageForTestVolume (zxhImageData *p)
	same dimension as the test image
virtual zxhImageData *	GetMaskImageForTestVolume ()
virtual int	ComputeConstanceForGradient ()
	pre compute:
Protected Attributes
float	m_fWeightingVolumeFromRef
float	m_fStandardDeviation
float	m_fVolumeFromRefOrigin
	constant
float	m_fVolumeFromRefCurrentTransform
zxhImageData *	m_pMaskImageForRefVolume
float	m_fWeightingVolumeFromTest
	weighting volume preserve from test
float	m_fStandardDeviationTest
zxhTransformBase *	m_pRegriddingdTransform
float	m_fVolumeFromTestCurrentTransform
	constant
float	m_fNumVolumeFromTestCurrentTransform
zxhImageData *	m_pMaskImageForTestVolume

---

Detailed Description

(normalized) mutual information + penalty term(constraint)

---

Constructor & Destructor Documentation

zxhMetricMIConstraint::~zxhMetricMIConstraint

(

void

)

Returns:

---

Member Function Documentation

zxhMetricBase * zxhMetricMIConstraint::Clone

(

zxhMetricBase *&

pRet

)

[virtual]

Returns:

Reimplemented from zxhMetricMI.

Reimplemented in zxhMetricMIFFD, zxhMetricMIFFD2, zxhMetricMIFFD2ConstDiscretePath, zxhMetricMIFFD2MultiImage, zxhMetricMIFFDSEMI, zxhMetricMILocalAffines, and zxhMetricMIMultiImage.

int zxhMetricMIConstraint::GetValue

(

zxhlfloat &

fValue

)

[virtual]

Returns:

similarity and number of computed pixel pair

Reimplemented from zxhMetricMI.

Reimplemented in zxhMetricMIFFD, zxhMetricMIFFD2, zxhMetricMIFFD2MultiImage, zxhMetricMIFFDSEMI, and zxhMetricMIMultiImage.

---

The documentation for this class was generated from the following files:

• zxhMetricMIConstraint.h
• zxhMetricMIConstraint.cpp
