zxhMetricConstDiscretePathBase Class Reference

can input multiple images for registration m_pImageTest(Ref) are the same, and used as coordinate reference, such as when define FFD m_imgRef are dT(m_pImageRef)^{-n} to implement methods in drived classes SetConstDiscretePathMetricBase; GetValue/ComputeConstant (UpdateImage); SetImage; SetMaskImage; SetFFDMaskImage (ffd) for registration using this metric, there should not involve transformation concatenation (e.g. for diffeomorphism) More...

#include <zxhMetricConstDiscretePathBase.h>

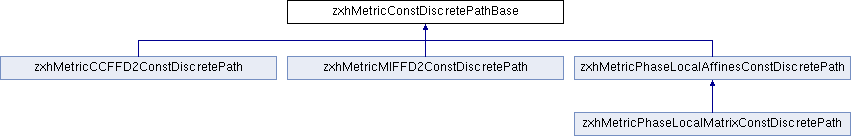

Inheritance diagram for zxhMetricConstDiscretePathBase:

List of all members.

Public Member Functions
	zxhMetricConstDiscretePathBase (void)
	constructor
	~zxhMetricConstDiscretePathBase (void)
virtual std::string	GetMetricType ()
virtual zxhMetricConstDiscretePathBase *	Clone (zxhMetricConstDiscretePathBase *&pRet)
virtual void	SetNumberOfConstDiscretePathStep (int n)
virtual int	GetNumberOfConstDiscretePathStep () const
virtual void	SetStepsForUpdatingRefImage (int n)
virtual int	GetStepsForUpdatingRefImage () const
virtual void	SetIsoSpacingUpdatedRefImage (float f)
virtual float	GetIsoSpacingUpdatedRefImage () const
virtual bool	UpdateAndSetImage ()
Protected Member Functions
void	GetUpdateImageSpacingSizeInfo (float spacing[], int size[], zxhImageInfo &imageinfo) const
bool	NeedUpdateImage ()
virtual bool	UpdateImage ()
virtual void	SetUpdatedImages ()=0
virtual void	SetConstDiscretePathMetricBase ()=0
	this function is to remind of this setting in derived class
Protected Attributes
zxhMetricBase *	m_pConstDiscretePathMetricBase
	to this in derived class, none-clone-ible
int	m_nNumberOfConstDiscretePathStep
zxhImageData *	m_pImageRefOrigin [ZXH_CONSTDISCRETEPATH_NUMREFIMAGE]
zxhTransformBase *	m_pConstDiscretePathTransform
	pointer to the estimated const discrete path transformation; use m_pConstDiscretePathMericBase->GetTranform() is m_pConstDiscretePathTransform==0
int	m_nStepsForUpdatingRefImage
int	m_iTimesCallingUpdatingRefImage
zxhImageData	m_imgRefUpdated [ZXH_CONSTDISCRETEPATH_NUMREFIMAGE]
float	m_fIsoSpacingUpdatedRefImage

---

Detailed Description

can input multiple images for registration m_pImageTest(Ref) are the same, and used as coordinate reference, such as when define FFD m_imgRef are dT(m_pImageRef)^{-n} to implement methods in drived classes SetConstDiscretePathMetricBase; GetValue/ComputeConstant (UpdateImage); SetImage; SetMaskImage; SetFFDMaskImage (ffd) for registration using this metric, there should not involve transformation concatenation (e.g. for diffeomorphism)

---

Constructor & Destructor Documentation

zxhMetricConstDiscretePathBase::~zxhMetricConstDiscretePathBase

(

void

)

Returns:

---

Member Function Documentation

zxhMetricConstDiscretePathBase * zxhMetricConstDiscretePathBase::Clone

(

zxhMetricConstDiscretePathBase *&

pRet

)

[virtual]

Returns:

bool zxhMetricConstDiscretePathBase::UpdateAndSetImage

(

)

[virtual]

return whether update (need called in NeedUpdateImage) 1. update ref image; 2. set images to metricbase and transformation

bool zxhMetricConstDiscretePathBase::UpdateImage

(

)

[protected, virtual]

return whether update (need called in NeedUpdateImage) 1. update ref image;

Reimplemented in zxhMetricPhaseLocalMatrixConstDiscretePath.

---

Member Data Documentation

float zxhMetricConstDiscretePathBase::m_fIsoSpacingUpdatedRefImage [protected]

mm in registration use Default: 0 (original image's), negative (times of sampling interval), positive (isotropic spacing mm)

zxhImageData zxhMetricConstDiscretePathBase::m_imgRefUpdated[ZXH_CONSTDISCRETEPATH_NUMREFIMAGE] [protected]

updated ref image [0] and ref mask imge [1], else backup

int zxhMetricConstDiscretePathBase::m_nNumberOfConstDiscretePathStep [protected]

compose metricbase::transform m_nNumberOfConstDiscretePathStep times get the transformation from original test to ref images metricbase::transform for optimizing and (metricbase::transform)^{m_nNumberOfConstDiscretePathStep-1} for updating ref images

zxhImageData* zxhMetricConstDiscretePathBase::m_pImageRefOrigin[ZXH_CONSTDISCRETEPATH_NUMREFIMAGE] [protected]

pointer to original ref image [0] and mask image [1], else backup need to reimplement SetImage and SetMaskImage in derived class

---

The documentation for this class was generated from the following files:

• zxhMetricConstDiscretePathBase.h
• zxhMetricConstDiscretePathBase.cpp
