special design interface for metric can be used in FFD transformation and gradient to compute gradient 2010-04-13 ADD 1) Compute the bending energy on ffd grid points ONLY: GetBendingEnergy 2) Compute derivative of current FFD: ComputeCtrPntOnTargetForceForBendingEnergy need derived class to implement the ComputeConstanceForFFDGradient with ComputeCtrPntOnTargetForceForBendingEnergy RMS CC NV not implement yet 3) Set WeightFFDBendingEnergy More...
#include <zxhMetricFFDBase.h>
Public Member Functions | |
zxhMetricFFDBase (void) | |
constructor | |
~zxhMetricFFDBase (void) | |
deconstructor | |
virtual zxhMetricFFDBase * | Clone (zxhMetricFFDBase *&p) |
virtual std::string | GetMetricType () |
virtual zxhlfloat | GetBendingEnergy (zxhTransformFFDBase *pTrans) |
virtual bool | ComputeCtrPntOnTargetForceForBendingEnergy (zxhTransformFFDBase *pTrans, zxhTransformFFDBase *gradient) |
adding the bending energy force to -> gradient; return success? | |
virtual int | GetValueByFFDGrid (zxhlfloat &fValue, int aiCtrPnt[ImageDimensionMax])=0 |
virtual int | ComputeConstanceForFFDGradient ()=0 |
partial differentiation | |
virtual int | GetDiffByFFDGrid (float *afPD, zxhTransformFFDBase *pFFDGrid, int *aiCtrPnt, zxhTransformFFDBase *pDifferential) |
virtual int | GetDiffByFFDGridOnFFDPhysicalVector (float *afPD, zxhTransformFFDBase *pFFDGrid, int *aiCtrPnt, zxhTransformFFDBase *pDifferential, float *vector) |
currently using finite difference(no AddFiniteDiffPenaltyByFFDGrid yet) | |
virtual int | GetBendingEnergyDerivative (float *afPD, int *aiCtrPnt) |
as func name | |
virtual void | SetPreComputeFFDsCurrPosition (float *afCurrCtrPntWorld, float *afFiniteDiffPosition) |
virtual void | SetWeightFFDBendingEnergy (float f) |
virtual float | GetWeightFFDBendingEnergy (void) |
virtual void | SetUsingFFDsSubVolume (bool b) |
virtual bool | GetUsingFFDsSubVolume (void) |
void | GetCtrPntDerivativeConst (zxhTransformFFDBase &ret) const |
virtual zxhTransformFFDBase * | GetCtrPntDerivativeConst () |
use it carefully | |
Protected Member Functions | |
virtual void | GetFFDControlPointSupportVolumeTest (float *afCtrVolumeTest, int aiCtrPnt[]) |
afCtrVolumeWorld[2][ImageDimensionMax], do guarantee any roi or FOV; afCtrVolumePhys[2][ImageDimensionMax] | |
virtual void | TransformPointToWorldPlusDisplacementAdvanceByBsplineFFDs (zxhImageDataT< float > *aPreComputeTransformPointToWorld, int dimension, int x, int y, int z, int t, float fux, float fuy, float fuz, float *pWorldRef) |
virtual void | TransformPointToWorldPlusDisplacementAdvanceByBsplineFFDs (zxhImageDataT< float > *aPreComputeTransformPointToWorld, int dimension, float x, float y, float z, float t, float fux, float fuy, float fuz, float *pWorldRef) |
virtual void | DisplacementAdvanceByBsplineFFDsUsingPreComputedWorld (int dimension, float ux, float uy, float uz, float *pAdWorld) |
Used only when no current transformation or aPreComputeTransformPointToWorld is zero field. | |
virtual int | AddFiniteDiffPenaltyByFFDGrid (float *afPD, zxhTransformFFDBase *pFFDGrid, int *aiCtrPnt, zxhTransformFFDBase *pDifferential) |
Current only. | |
virtual bool | AddAllCtrPntOnTargetForceForBendingEnergy () |
virtual void | InitMetricFFDConstant () |
constant variables for FFD related | |
virtual void | SetFFDMetricBase ()=0 |
this function is to remind of setting m_pMetricBase in non-abstract derived class | |
Protected Attributes | |
zxhMetricBase * | m_pMetricBase |
point to metric, not clone-able; MUST set in derived class | |
zxhTransformFFDBase * | m_pCtrPntDerivativeConst |
can be used as sum up of all penalty terms (weighted) or sum up of the cost function | |
zxhTransformFFDBase * | m_pCtrPntDerivativeBendingEnergyConst |
store: -(bending energy)*m_fWeightFFDBendingEnergy | |
float | m_fWeightFFDBendingEnergy |
float | m_afCurrFFDsCtrPntWorld [ImageDimensionMax] |
float | m_afFiniteDiffPosition [ImageDimensionMax] |
bool | m_bFFDsSubVolume |
special design interface for metric can be used in FFD transformation and gradient to compute gradient 2010-04-13 ADD 1) Compute the bending energy on ffd grid points ONLY: GetBendingEnergy 2) Compute derivative of current FFD: ComputeCtrPntOnTargetForceForBendingEnergy need derived class to implement the ComputeConstanceForFFDGradient with ComputeCtrPntOnTargetForceForBendingEnergy RMS CC NV not implement yet 3) Set WeightFFDBendingEnergy
bool zxhMetricFFDBase::AddAllCtrPntOnTargetForceForBendingEnergy | ( | ) | [protected, virtual] |
as func name adding the bending energy force to -> m_pCtrPntDerivativeConst and m_pCtrPntDerivativeBendingEnergyConst normally called in function computing constants such as ComputeConstanceForFFDGradient
int zxhMetricFFDBase::GetDiffByFFDGrid | ( | float * | afPD, |
zxhTransformFFDBase * | pFFDGrid, | ||
int * | aiCtrPnt, | ||
zxhTransformFFDBase * | pDifferential | ||
) | [virtual] |
Diff = (forward-backward)/2steplength ( 2009-10-01) should compute the constant (call ComputeConstanceForFFDGradient) before calling this already including penalty terms (AddFiniteDiffPenaltyByFFDGrid)
for each dimension
2 forward
3 backward 2 steps
4 return to current position
compute the value

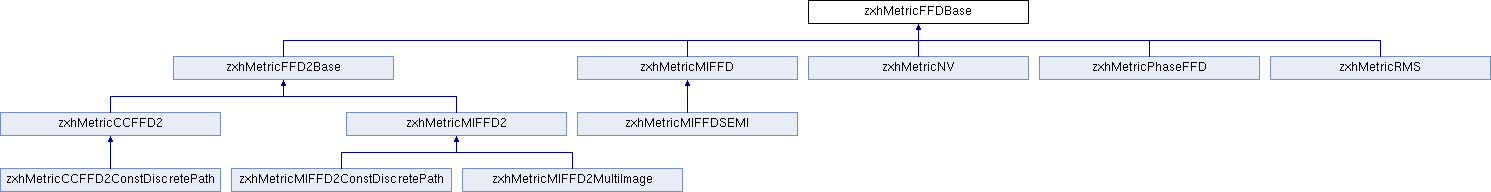

Reimplemented in zxhMetricFFD2Base, zxhMetricMIFFD, zxhMetricMIFFDSEMI, and zxhMetricNV.
int zxhMetricFFDBase::GetDiffByFFDGridOnFFDPhysicalVector | ( | float * | afPD, |
zxhTransformFFDBase * | pFFDGrid, | ||
int * | aiCtrPnt, | ||
zxhTransformFFDBase * | pDifferential, | ||
float * | vector | ||
) | [virtual] |
currently using finite difference(no AddFiniteDiffPenaltyByFFDGrid yet)
1 compute the current trans on current local volume : FreqCurr, PDFCurr = tatal - currentvolume
2 forward
3 backward
4 return to current position
compute the value
Reimplemented in zxhMetricMIFFD, and zxhMetricNV.
void zxhMetricFFDBase::GetFFDControlPointSupportVolumeTest | ( | float * | afCtrVolumeTest, |
int | aiCtrPnt[] | ||
) | [protected, virtual] |
afCtrVolumeWorld[2][ImageDimensionMax], do guarantee any roi or FOV; afCtrVolumePhys[2][ImageDimensionMax]
Guarantee 1) within ROI; 2) from < to ; Not guarantee from coordinate is on the sampling grid
virtual int zxhMetricFFDBase::GetValueByFFDGrid | ( | zxhlfloat & | fValue, |
int | aiCtrPnt[ImageDimensionMax] | ||
) | [pure virtual] |
for GetDiffByFFDGrid and GetDiffByFFDGridOnFFDPhysicalVector SHOULD be implemented in derived class when using zxhMetricFFDBase::GetDiffByFFDGrid and GetDiffByFFDGridOnFFDPhysicalVector To compute local similarity
Implemented in zxhMetricFFD2Base, zxhMetricMIFFD, zxhMetricNV, zxhMetricPhaseFFD, and zxhMetricRMS.
void zxhMetricFFDBase::SetPreComputeFFDsCurrPosition | ( | float * | afCurrCtrPntWorld, |
float * | afFiniteDiffPosition | ||
) | [virtual] |
2010-12-23 revised by zxh : be projected onto world vector for usage in transformation to world
virtual void zxhMetricFFDBase::TransformPointToWorldPlusDisplacementAdvanceByBsplineFFDs | ( | zxhImageDataT< float > * | aPreComputeTransformPointToWorld, |
int | dimension, | ||
int | x, | ||
int | y, | ||
int | z, | ||
int | t, | ||
float | fux, | ||
float | fuy, | ||
float | fuz, | ||
float * | pWorldRef | ||
) | [inline, protected, virtual] |
Pre computed transformation for FFDs computing derivative of control points (mainly for MI metric) [x,y,z,t] grid index of aPreComputeTransformPointToWorld/m_pImageTest [fux,fuy,fuz] offsets of the point in terms of the FFD grid for computing the weight
float zxhMetricFFDBase::m_afCurrFFDsCtrPntWorld[ImageDimensionMax] [protected] |
Setting this variable is for GetDiffByFFDGrid to call GetValueByFFDGrid (GetValueByFFDGrid may call some other function without giving control point's coordinate, e.g.ComputeHistogramFromPDF4DFFD)
float zxhMetricFFDBase::m_afFiniteDiffPosition[ImageDimensionMax] [protected] |
Gradient of metric using finite difference negative: length backward, 0, positive: length forward will be projected onto world vector when setting it
