zxhTransformAffine.h: interface for the zxhTransformAffine class. Y = Mskew x {Mscale x Mrotate x (X-Center) + Translate + Center} = K x {S x R x (X-C) + L + C} Kind 1- old (not used) rotate (clockwise is positive) by center,scaling,translate, X'= cos(fDegZ)*cos(fDegY)*(fFixx - fCx)*fScalingX + (sin(fDegZ)*cos(fDegX) + cos(fDegZ)*(sin(fDegY))*(sin(fDegX)))*(fFixy - fCy)*fScalingY + ((sin(fDegZ))*(sin(fDegX)) + cos(fDegZ)*(-sin(fDegY))*cos(fDegX))*(fFixz - fCz)*fScalingZ + fCx*fScalingX + fTx; Y'= (-sin(fDegZ))*cos(fDegY)*(fFixx - fCx) *fScalingX + (cos(fDegZ)*cos(fDegX) + (-sin(fDegZ))*(sin(fDegY))*(sin(fDegX)))*(fFixy - fCy) *fScalingY + (cos(fDegZ)*(sin(fDegX)) + (sin(fDegZ))*(sin(fDegY))*cos(fDegX))*(fFixz - fCz)*fScalingZ + fCy*fScalingY + fTy; Z'= sin(fDegY)*(fFixx - fCx)*fScalingX + cos(fDegY)*(-sin(fDegX))*(fFixy - fCy)*fScalingY + cos(fDegY)*cos(fDegX)*(fFixz - fCz)*fScalingZ + fCz*fScalingZ + fTz; for 4thDimension(temporal), only scaling, then translating independent from spatial dimension differs from itk++, fDegX..Z need *(-1), fC*fScaling% while in itk++ no *fScaling% adding skew info More...
#include <zxhTransformAffine.h>
Public Member Functions | |
| zxhTransformAffine () | |
| constructor | |
| virtual | ~zxhTransformAffine () |
| deconstructor | |
| virtual bool | SetTransformFromFile (const char *pFile) |
| from file | |
| virtual bool | SetTransformFromStream (std::ifstream &ifs) |
| from stream | |
| virtual bool | SetTransformIdentity () |
| set transformation as a identity transform, affine doesn't change centre | |
| virtual bool | SetTransformAlignByCentre (int iCentre) |
| virtual bool | SetTransformAlignByCentre (std::string sCentre) |
| virtual std::string | GetPrintString () |
| virtual std::string | GetTransformType () |
| virtual zxhTransformBase * | Clone (zxhTransformBase *&pRet) |
| float * | GetRotation () |
| get and set transformation parameters:rotation in degree | |
| float * | GetCenter () |
| rotation center(mm) | |
| float * | GetScaling () |
| scaling factor | |
| float * | GetTranslation () |
| translation(mm) | |
| float * | GetSkewxy () |
| skew x-y and y-x | |
| float * | GetSkewyz () |
| skew y-z and z-y | |
| float * | GetSkewzx () |
| skew z-x and x-z | |
| void | GetRotationValue (float rotation[ImageDimensionMax]) |
| void | GetCenterValue (float center[ImageDimensionMax]) |
| void | GetTranslationValue (float tranlsation[ImageDimensionMax]) |
| void | GetScalingValue (float scaling[ImageDimensionMax]) |
| void | GetSkewValue (float skewxy[2], float skewyz[2], float skewxz[2]) |
| void | SetRotation (float afRotate[ImageDimensionMax]) |
| set | |
| void | SetCenter (float afCenter[ImageDimensionMax]) |
| set | |
| void | SetScaling (float afScaling[ImageDimensionMax]) |
| set | |
| void | SetTranslation (float afTranslate[ImageDimensionMax]) |
| set | |
| void | SetSkewxy (float afSkewxy[2]) |
| set | |
| void | SetSkewyz (float afSkewyz[2]) |
| set | |
| void | SetSkewzx (float afSkewzx[2]) |
| set | |
| virtual void | TransformWorldToWorld (const float fVectorFromWorld[ImageDimensionMax], float fVectorToWorld[ImageDimensionMax]) |
| virtual void | InverseTransformWorld (float fVectorToWorld[ImageDimensionMax], float fVectorFromWorld[ImageDimensionMax]) |
| inverse transform, currently only for 3D | |
| virtual bool | GetJacobianMatrixWorld (float fWorld[ImageDimensionMax], float pJacobian[ImageDimensionMax *ImageDimensionMax]) |
| virtual bool | GetJacobianMatrix (float fVector[ImageDimensionMax], float pJacobian[ImageDimensionMax *ImageDimensionMax]) |
| pJacobian[i*4+0..3] = dX/dx.dy.dz.dt | |
| virtual zxhTransformAffine & | operator= (const zxhTransformAffine b) |
| operators Do NOT use parameters to set them because this will cause problems when using localaffine | |
| virtual bool | SetTransformPara (float f) |
| set | |
| virtual bool | GetAdd (zxhTransformBase *, zxhTransformBase *) |
| A+B. | |
| virtual bool | Add (zxhTransformBase *) |
| + | |
| virtual bool | GetSubtract (zxhTransformBase *, zxhTransformBase *) |
| A-B. | |
| virtual bool | Subtract (zxhTransformBase *) |
| virtual bool | GetMultiply (zxhTransformBase *, float) |
| A*f. | |
| virtual bool | Multiply (float) |
| *f | |
| virtual bool | GetMultiplyByPara (zxhTransformBase *, zxhTransformBase *) |
| A*B. | |
| virtual bool | MultiplyByPara (zxhTransformBase *) |
| *B | |
| virtual bool | GetCompareByPara (zxhTransformBase *, float f=0) |
| threshold to -1 0 and 1 compare with f | |
| virtual bool | CompareByPara (float f=0) |
| threshold to -1 0 and 1 compare with f | |
| virtual float | GetMagnitudeAsVector (void) |
| transformation treated as vector | |
| virtual float | GetMaxAbsValueFromParameters (void) |
| virtual float | GetPointMutiplyAsVector (zxhTransformBase *) |
| get | |
| virtual void | UpdateMatrix () |
| virtual void | UpdateInvertMatrix () |
| virtual int | GetNoParameters () |
| virtual bool | SetParameterValue (int index, float f) |
| virtual float | GetParameters (int index) |
| 0~3translate 4~7rotate 8~11scaling 12~15center 16~21 skew | |
| virtual int | GetDegreeOfFreedom () |
| get transforms DOF | |
| virtual int | GetDOFWithValue (float f) |
| get parameter value >= f , dof | |
| virtual float | GetMaxLocalMagnitudeAndNormalisation (bool bNormalisationByLocalMagnitude) |
| for optimization step length normalization | |
| virtual bool | AdvanceStep (zxhTransformBase *p, float f=1) |
| for registration optimization | |
| virtual float * | GetMatrixPointer () |
| virtual float * | GetInvertMatrixPointer () |
| virtual bool | ComputeMetricGradient (zxhMetricBase *pMetric, zxhTransformBase *pInfluence=0) |
| virtual void | InitialGradientDifferentialStep (zxhTransformAffine *pGrad, float TranslateScale, float RotateScale, float ScalingScale, float factor=1) |
| virtual void | InitialGradientDifferentialStep (zxhTransformAffine *pGrad, float TranslateScale[], float RotateScale[], float ScalingScale[], float SkewScale, float factor=1) |
Protected Attributes | |
| float | m_afRotate [ImageDimensionMax] |
| 先 XYZ轴的旋转度数(角度范围0-2pi) | |
| float | m_afTranslate [ImageDimensionMax] |
| 再 x,y,z方向的位移（ ） | |
| float | m_afCenter [ImageDimensionMax] |
| center | |
| float | m_afScaling [ImageDimensionMax] |
| scaling | |
| float | m_afSkewxy [2] |
| float | m_afSkewyz [2] |
| float | m_afSkewzx [2] |
| float | m_afMatrix [4][4] |
| transformation matrix | |
| float | m_afInvertMatrix [4][4] |
| transformation inverse of matrix 4*4 | |
zxhTransformAffine.h: interface for the zxhTransformAffine class. Y = Mskew x {Mscale x Mrotate x (X-Center) + Translate + Center} = K x {S x R x (X-C) + L + C} Kind 1- old (not used) rotate (clockwise is positive) by center,scaling,translate, X'= cos(fDegZ)*cos(fDegY)*(fFixx - fCx)*fScalingX + (sin(fDegZ)*cos(fDegX) + cos(fDegZ)*(sin(fDegY))*(sin(fDegX)))*(fFixy - fCy)*fScalingY + ((sin(fDegZ))*(sin(fDegX)) + cos(fDegZ)*(-sin(fDegY))*cos(fDegX))*(fFixz - fCz)*fScalingZ + fCx*fScalingX + fTx; Y'= (-sin(fDegZ))*cos(fDegY)*(fFixx - fCx) *fScalingX + (cos(fDegZ)*cos(fDegX) + (-sin(fDegZ))*(sin(fDegY))*(sin(fDegX)))*(fFixy - fCy) *fScalingY + (cos(fDegZ)*(sin(fDegX)) + (sin(fDegZ))*(sin(fDegY))*cos(fDegX))*(fFixz - fCz)*fScalingZ + fCy*fScalingY + fTy; Z'= sin(fDegY)*(fFixx - fCx)*fScalingX + cos(fDegY)*(-sin(fDegX))*(fFixy - fCy)*fScalingY + cos(fDegY)*cos(fDegX)*(fFixz - fCz)*fScalingZ + fCz*fScalingZ + fTz; for 4thDimension(temporal), only scaling, then translating independent from spatial dimension differs from itk++, fDegX..Z need *(-1), fC*fScaling% while in itk++ no *fScaling% adding skew info
v2.1 define on world coordinate, hence the transformation on x/y/z direction is not on image grid direction anymore
| zxhTransformBase * zxhTransformAffine::Clone | ( | zxhTransformBase *& | pRet | ) | [virtual] |

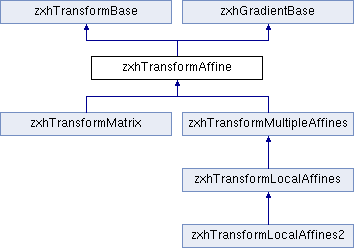

Reimplemented from zxhTransformBase.
Reimplemented in zxhTransformLocalAffines, zxhTransformLocalAffines2, zxhTransformMatrix, and zxhTransformMultipleAffines.
| bool zxhTransformAffine::ComputeMetricGradient | ( | zxhMetricBase * | pMetric, |
| zxhTransformBase * | pInfluence = 0 |
||
| ) | [virtual] |
computer gradient, influence control status for optimisation if infl==0, then use m_fDifferentialStep
Implements zxhGradientBase.
Reimplemented in zxhTransformLocalAffines, and zxhTransformMultipleAffines.
| virtual bool zxhTransformAffine::GetJacobianMatrix | ( | float | fVector[ImageDimensionMax], |
| float | pJacobian[ImageDimensionMax *ImageDimensionMax] | ||
| ) | [inline, virtual] |
pJacobian[i*4+0..3] = dX/dx.dy.dz.dt
Reimplemented from zxhTransformBase.
| virtual bool zxhTransformAffine::GetJacobianMatrixWorld | ( | float | fWorld[ImageDimensionMax], |
| float | pJacobian[ImageDimensionMax *ImageDimensionMax] | ||
| ) | [virtual] |
Get partial differential of transformation [Y1 Y2 Y3]=T(x), with respect to the transformation parameter Ti with index return whether success, results (e.g. 3D, [d(Y1)/d(Ti) d(Y2)/d(Ti) d(Y3)/d(Ti)]) returned in g[4]
Reimplemented from zxhTransformBase.
Reimplemented in zxhTransformLocalAffines.
| virtual int zxhTransformAffine::GetNoParameters | ( | ) | [inline, virtual] |
Get partial differential of transformation [Y1 Y2 Y3]=T(x), with respect to the transformation parameter Ti with index return whether success, results (e.g. 3D, [d(Y1)/d(Ti) d(Y2)/d(Ti) d(Y3)/d(Ti)]) returned in g[4]
Implements zxhTransformBase.
Reimplemented in zxhTransformMultipleAffines.
| std::string zxhTransformAffine::GetPrintString | ( | void | ) | [virtual] |
Reimplemented from zxhTransformBase.
Reimplemented in zxhTransformLocalAffines, zxhTransformLocalAffines2, zxhTransformMatrix, and zxhTransformMultipleAffines.
| virtual std::string zxhTransformAffine::GetTransformType | ( | ) | [inline, virtual] |
Reimplemented from zxhTransformBase.
Reimplemented in zxhTransformLocalAffines, zxhTransformMatrix, and zxhTransformMultipleAffines.
| void zxhTransformAffine::InitialGradientDifferentialStep | ( | zxhTransformAffine * | pGrad, |
| float | TranslateScale, | ||
| float | RotateScale, | ||
| float | ScalingScale, | ||
| float | factor = 1 |
||
| ) | [virtual] |
This is to initialise the length of the gradient affine for optimisation in the registration, including influence and differential length in FE computing The resultant value corresponding to step length each iteration for each parameter Skew scale is simple set to the same as RotatScale How to set? e.g. if the capture range is 100mm for Translate, 50degree for rotate 0.5times for scaling, and we propose to use 100steps, then TranslateScale=100/100mm, RotateScale=50/100degree, ScalingScale=0.5/100
Reimplemented in zxhTransformMultipleAffines.
| zxhTransformAffine & zxhTransformAffine::operator= | ( | const zxhTransformAffine | b | ) | [virtual] |
operators Do NOT use parameters to set them because this will cause problems when using localaffine
gradient parameter
| bool zxhTransformAffine::SetParameterValue | ( | int | index, |
| float | f | ||
| ) | [virtual] |
set transformation parameter value, if the transformation model need pre-computation from parameters for efficiency such as affine, then re-implement this function to call the pre-computation method after set the value
Implements zxhTransformBase.
Reimplemented in zxhTransformMultipleAffines.
| bool zxhTransformAffine::SetTransformAlignByCentre | ( | int | iCentre | ) | [virtual] |
set pretransformation by aligning the image size centre "centre" (2) or gray level centre "gcentre" (3) test and ref images should be set
Reimplemented in zxhTransformMultipleAffines.
| void zxhTransformAffine::TransformWorldToWorld | ( | const float | fVectorFromWorld[ImageDimensionMax], |
| float | fVectorToWorld[ImageDimensionMax] | ||
| ) | [virtual] |
rotate by center,scaling,translate
Implements zxhTransformBase.
Reimplemented in zxhTransformLocalAffines.
| void zxhTransformAffine::UpdateMatrix | ( | ) | [virtual] |
Update transformation matrix for linear transformation Y = Mskew x {Mscale x Mrotate x (X-Center) + Translate + Center} = K x {S x R x (X-C) + L + C}
Update transformation matrix for linear transformation Y = Mskew x {Mscale x Mrotate x (X-Center) + Translate + Center} = K x {S x R x (X-C) + L + C} Y = KSRX + K(L+C) - KSRC (doubled checked on 2011-03-20, correct matrx)
Reimplemented in zxhTransformMatrix, and zxhTransformMultipleAffines.
float zxhTransformAffine::m_afSkewxy[2] [protected] |
skew angles only for 3D Skew angle in the x-y plane (in degrees) Skew angle in the y-x plane (in degrees)
float zxhTransformAffine::m_afSkewyz[2] [protected] |
Skew angle in the y-z plane (in degrees) Skew angle in the z-y plane (in degrees)
float zxhTransformAffine::m_afSkewzx[2] [protected] |
Skew angle in the z-x plane (in degrees) Skew angle in the x-z plane (in degrees)
