# Kalman Filter Example

Using Kevin Murphy's toolbox, and based on his aima.m example, as used to generate Figure 17.9 of "Artificial Intelligence: a Modern Approach", Russell and Norvig, 2nd edition, Prentice Hall.

Ged Ridgway, Nov 2006

## Physical system

A point moving in a plane with constant (but noisy) velocity, where only position is observed.

```State = (x1 x2 x1dot x2dot)
Observation (x1 x2)
Unit time-step =>
xi(k) = xi(k-1) + xidot(k-1) + noise
xidot(k) = xidot(k-1) + noise
zi(k) = xi(k) + noise```

## Setup state space model

```n = 4; % state size
m = 2; % observation size
F = [1 0 1 0; 0 1 0 1; 0 0 1 0; 0 0 0 1]
H = [1 0 0 0; 0 1 0 0]
Q = 0.1*eye(n);
% R = 1*eye(m);
R = 0.3*eye(m);
initx = [1.5 6.5 1 0]';
initV = 10*eye(n);
```
```F =

1     0     1     0
0     1     0     1
0     0     1     0
0     0     0     1

H =

1     0     0     0
0     1     0     0

```

## Sample from state space (linear dynamical) system

```seed = 9;
rand('state', seed);
randn('state', seed);
K = 15;
[x,z] = sample_lds(F, H, Q, R, initx, K);
figure; hold on; axis equal; axis([0 12 0 10]);
plot(x(1,:), x(2,:), 'ks-');
plot(z(1,:), z(2,:), 'g*');
xlabel('X1')
ylabel('X2')

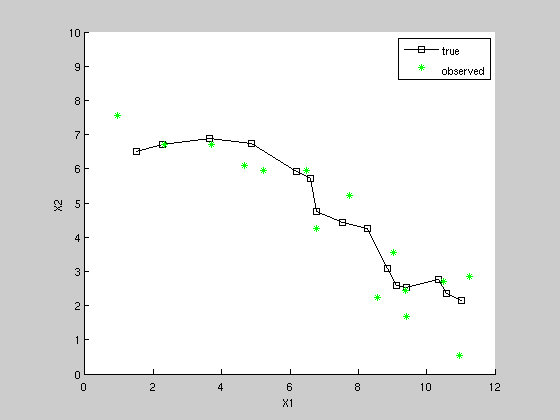

legend('true', 'observed')
```

## Kalman Filter estimate of state and covariance

(note could use different estimated system, rather than ground truth, e.g. change Q and/or R here -- balance of Q & R has significant effect)

```[xfilt, Vfilt] = kalman_filter(z, F, H, Q, R, initx, initV);

plot(xfilt(1,:), xfilt(2,:), 'rx:');
for k=1:K, plotgauss2d_old(xfilt(1:2, k), Vfilt(1:2, 1:2, k), 1); end

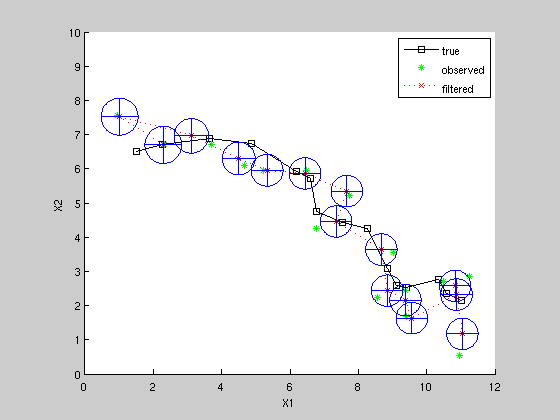

legend('true', 'observed', 'filtered')
```

## Kalman Smoothing estimate

```[xsmooth, Vsmooth] = kalman_smoother(z, F, H, Q, R, initx, initV);

figure; hold on; axis equal; axis([0 12 0 10]);
plot(x(1,:), x(2,:), 'ks-');
plot(z(1,:), z(2,:), 'g*');
plot(xsmooth(1,:), xsmooth(2,:), 'rx:');
for k=1:K, plotgauss2d_old(xsmooth(1:2, k), Vsmooth(1:2, 1:2, k), 1); end

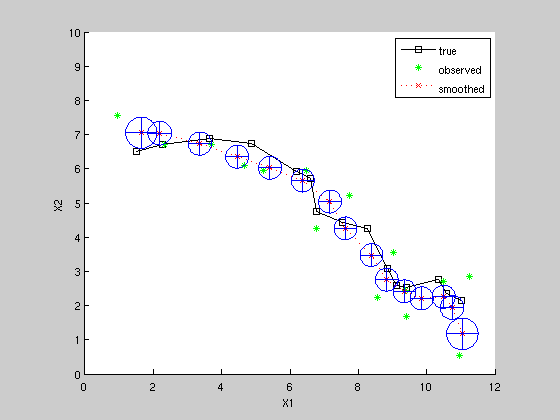

legend('true', 'observed', 'smoothed')
xlabel('X1')
ylabel('X2')
```

## Compare mean squared estimation errors

note smoothing is superior to filtering.

```dfilt = x([1 2],:) - xfilt([1 2],:);
mse_filt = sqrt(sum(sum(dfilt.^2)))
dsmooth = x([1 2],:) - xsmooth([1 2],:);
mse_smooth = sqrt(sum(sum(dsmooth.^2)))
```
```mse_filt =

3.0165

mse_smooth =

2.0863

```
